View VNC

Postby walberg » Sat Sep 16, 2017 12:55 pm

I want to connect Toon from my Mac (later on from Domoticz but that needs a VNC connection).

I have installed V11VNC on the Toon. I was searching for a VNC program for my mac, Tiger and Bvnc are only available as source. I found Real VNC.
Made an account at Real VNC. Too bad i cannot connect with the local ip I think too bad Real VNC is not working this way.

I also have an old Laptop (with Windows) but if i try to download an exe file i found that also for Windows there is only source code.

What do your quys use for VNC connection?
walberg
Member
Member

Posts: 181
Joined: January 2013
Location: Diemen

Re: View VNC

Postby Toonz » Sat Sep 16, 2017 1:08 pm

I use TigerVNC on Windows and bVNC free on Android
member of the Toon Software Collective
Toonz
Forum Moderator
Forum Moderator

Posts: 1644
Joined: December 2016

Re: View VNC

Postby walberg » Sat Sep 16, 2017 1:23 pm

As i can not find any app of Tigervnc only source i tried Bvnc on Samsung phone. Tried with local ip Bvnc> 192.168.178.70:22 user > with the install of x11vnc on Toon there was no user only password, So i used root and my password installed on x11vnc. Error Connection failed with a lot of errors
walberg
Member
Member

Posts: 181
Joined: January 2013
Location: Diemen

Re: View VNC

Postby michel30 » Sat Sep 16, 2017 2:05 pm

Hello,

For the mac osx I use realvnc you can download it on the realvnc dot com site

Regards,
Michel
michel30
Member
Member

Posts: 257
Joined: August 2017

Re: View VNC

Postby walberg » Sat Sep 16, 2017 2:13 pm

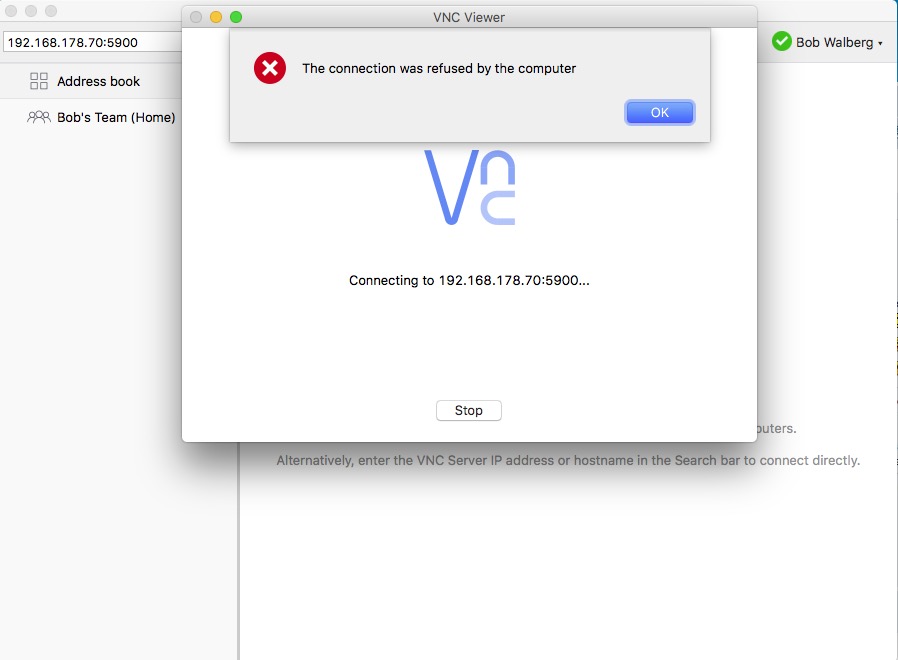

Schermafbeelding 2017-09-16 om 14.11.50.jpg
realvnc mac
Schermafbeelding 2017-09-16 om 14.11.50.jpg (56.04 KiB) Viewed 10689 times
Yes ik got it but if i try to connect it refuses
walberg
Member
Member

Posts: 181
Joined: January 2013
Location: Diemen

Re: View VNC

Postby Toonz » Sat Sep 16, 2017 2:15 pm

Have you opened port 5900 on the Toon in the /etc/default/iptables.conf ?
Password has been set when you first ran x11vnc on Toon. Stupid question maybe: is x11vnc running on Toon? Installation itself is not enough, you have to start it as well.
member of the Toon Software Collective
Toonz
Forum Moderator
Forum Moderator

Posts: 1644
Joined: December 2016

Re: View VNC

Postby walberg » Sat Sep 16, 2017 2:23 pm

yes i followed the documentation install x11vnc accessing Toon through VNC. i also reboot twice. But how can i check if VNC on the toon is started.

Block of changes on inittab:

# HCBv2 static stuff
#ovpn:235:respawn:/usr/sbin/openvpn --config /etc/openvpn/vpn.conf --verb 0 >/dev/null 2>&1
qtqt:245:respawn:/usr/bin/startqt >/dev/null 2>&1
# add serial console access: (added, MR!):
gett:235:respawn:/sbin/getty -L 115200 ttymxc0 vt102
Last edited by walberg on Sat Sep 16, 2017 2:37 pm, edited 1 time in total.
walberg
Member
Member

Posts: 181
Joined: January 2013
Location: Diemen

Re: View VNC

Postby Toonz » Sat Sep 16, 2017 2:27 pm

if you issue the 'top' command in a shell you will see the active processes.
Somewhere in that list should be x11vnc

Or start it again in a shell with the command 'x11vnc'. If it responds with port 5901 than it was already running also on port 5900
member of the Toon Software Collective
Toonz
Forum Moderator
Forum Moderator

Posts: 1644
Joined: December 2016

Re: View VNC

Postby walberg » Sat Sep 16, 2017 2:42 pm

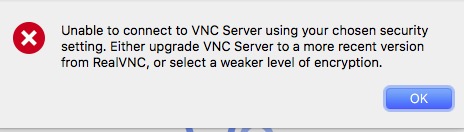

Schermafbeelding 2017-09-16 om 14.41.07.jpg
connection error
Schermafbeelding 2017-09-16 om 14.41.07.jpg (23.8 KiB) Viewed 10683 times
Aha, is was not started as it calls 5900
but now i have more info on the connection problem:
Too bad i can not see some settings on the VNCViewer to lower the security setting.
walberg
Member
Member

Posts: 181
Joined: January 2013
Location: Diemen

Re: View VNC

Postby Toonz » Sat Sep 16, 2017 2:53 pm

I have no experience with RealVNC. It should be working fine from your Android phone though (connection type Basic VNC)
member of the Toon Software Collective
Toonz
Forum Moderator
Forum Moderator

Posts: 1644
Joined: December 2016

Re: View VNC

Postby michel30 » Sat Sep 16, 2017 2:58 pm

On my mac I have choose let VNC choose the encryption and that works.
michel30
Member
Member

Posts: 257
Joined: August 2017

Re: View VNC

Postby walberg » Sat Sep 16, 2017 3:26 pm

michel30 wrote:On my mac I have choose let VNC choose the encryption and that works.

I found that and i have changed it to server (let VNC choose) but the error still stays. What about the user name?
walberg
Member
Member

Posts: 181
Joined: January 2013
Location: Diemen

Re: View VNC

Postby walberg » Sat Sep 16, 2017 4:45 pm

bvnc is working now, so the configuration on the Toon is fine. Only the operation on a mobile is not really nice in my opinion.
walberg
Member
Member

Posts: 181
Joined: January 2013
Location: Diemen

Re: View VNC

Postby michel30 » Sat Sep 16, 2017 5:45 pm

So on your macbook it is working now?

What do you mean on the cellphone it is not okay?
On my Iphone it looks the same as my macbook only you need to move your mouse over the screen.
michel30
Member
Member

Posts: 257
Joined: August 2017

Re: View VNC

Postby walberg » Sat Sep 16, 2017 6:00 pm

It's all too small, always shifting me, and once you've got to enter something, it's all a party, constantly wrong letters and numbers. Without glasses not at all. For me not the best option. But at least now, if ii really has to log in externally it could. On the Toon the settings are good, so now to the next step, Toon Connect with Domoticz. It is a pity that at this moment it is not yet possible to do everything on a single machine. Homeseer because plugwise is not going anywhere else, Domoticz for Zwave and Hue, and some 433 sensors, Toon for the thermostat, would be nice if it could all be in just one system.

And i have no Macbook my main machine is a Mac Mini. just 14 watts. And No With VNCViewer, i got no connect, tried a lot of settings in Expert but alway's gives the same error mentioned before
walberg
Member
Member

Posts: 181
Joined: January 2013
Location: Diemen
