Duwi ZW-ES Switch for Roller Blind.

[Saoude]

Hello Everybody.

I saw that some people use the Duwi switch to control windows and I please to see I am not the only one having questions.

I am using the Duwi-Interact Funk-Jalousiesch ZW-ES unit with 10 Channel Remote Control Unit ZW FD 10.
I have a blind which only required a 230 V pulse on the Up or Down wire to move Up and down and the other required that I press the button all the time it move and stop anyway at the end of the travel.
So I had no problem to install the first blind needed the pulse but I could not set the Duwi Switch to give a pulse, long enough for the blind to close completely or open completely without having the finger on the button.

I try to reset the switch ZW ESJ as described in the user manual page 32 but this does not work.
By applying this procedure, you only remove the switch from the remote control but do not reset anything.

Can you tell me where the information of the opening or closing time is stored, is it in the switch or inside the remote control.

My next step will be to program the blind with HomeSeer and the ZCS201 RS232 ZWave Computer interface

Can you tell what the main steps to do this are?

Another question about what it is said in page 18 of the Switch manual which said the following:
«NOTE: Should the adjustment of the operating times take place the help of the configuration tool of a third-party manufacturer,
You can consider the following values as the basis:
Please note that the adjustments should be undertaken only by well-versed technicians.

0x00 = no interruption/permanent operation
0x01-0x7F = 1 second to 127 seconds in 1-second steps
0x80-0xFE = 130 seconds (0x80) to 1390 seconds
(0xFE) in 10 second-steps
0xFF = factory settings 120 seconds

So what third-party tools should I use to do this for operation in France with European frequency?

Thanks for your advice and best regards.

Patrick.

Reference Description Fabricant QTY
ZRP230 HomePro Appliance Module ACT Inc 13
ZTH200 Homepro Wireless Controller ACT Inc 1
ZCS201 Zwave RF Computer Interface RS232 ACT Inc 1
ZW ESJ Funk Einsatz Jalousie DÜWI-INTERACT-POPP 3
CTZUS-1EU ControlThink USB Stick Europe LEVITON 1
RZP15 Appliance Plug 110V 15 A LEVITON 1
VRCP0 Vizia RF + Serial Interface Module 110V LEVITON 1
ZW FD 10 Remote Control 10 Channel DÜWI-INTERACT-POPP 1

[Saoude]

Hello,

I am sorry to see that nobody have given me a reply or help on this question.

Thanks and Best Regards.

Patrick.

[TANE]

Hi Patrick,

I have also some of this devices and have programmed them using Vera box.

You can also do that with Homeseer..but the support is very weak

[TANE]

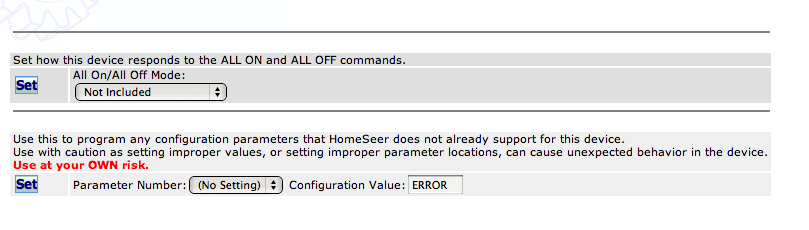

You can also try the Danfoss software for reconfiguring.. it's beter than the Homeseer option screen.

http://shop.tane.nl/download/Danfoss_1.0.5.exe

[edek]

Ok, I downloaded the Danfoss utility, but how should I configure these settings? I figure I need to go to advanced, and the tab "configuration", but which parameter do I have to set to 00 to remove the 2 minute on function and set it to permanent?

The german manual which came with the Duwi Jalousie switch ZW ESJ 05436 is not very helpful...

thanks.
