Fibaro Relay 2x1.5kW with pulse switch?

[DJF3]

Team,

When connected, the pulse switch switches on the light as long as I keep it pressed..

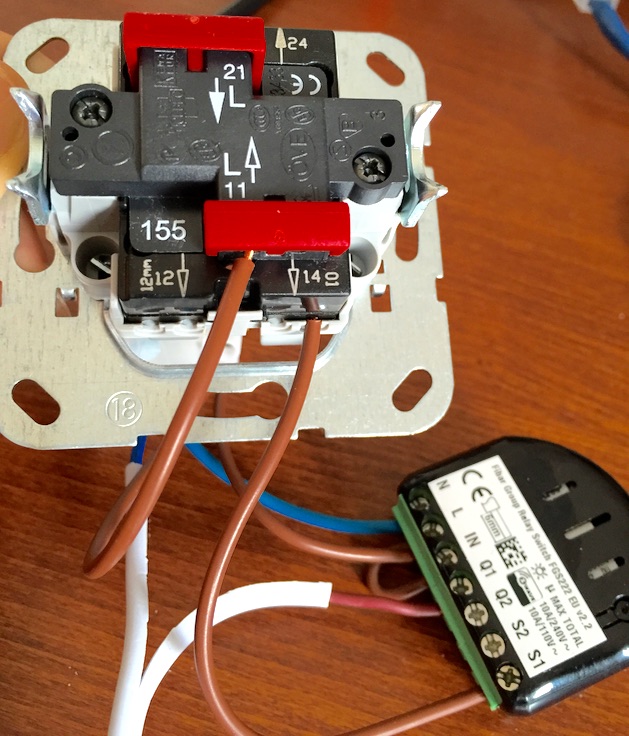

Fibaro Relay switch


The white (split) cable going down is connected to a lamp
Fibaro: S1 goes into the switch
Fibaro: Q1 goes to the lamp
Fibaro: IN is connected with L
Fibaro: L & N to 230v
Switch: other connection to L

It feels like I have connected the switch the wrong way

Fibaro parameter 14 (0=momentary switch, 1=toggle switch) have been tested with both 0 and 1. Same result.

Any idea?


Cheers
Dirk

[raymonvdm]

This should be the schematic you are using but i cannot figure this out using the picture. Are u using fixed cable or a wallplug so are u sure L1 is L1 and not Null because the wallplug is connected up side down?

If you measure the brown wire and ground do you measure 230Volt?




I think parameter 14 should be 0 and it should work fine then

[DJF3]

I think the problem may be in the Pulse Switch, of which I have no idea which cable should go where
The schematic you attached is the one I used to connect everything.

After measuring I found that connecting the wires as they are right now (in #11 and #14), clicking the switch would momentarily switch it on

Don't have any schematics or details on the Gira Pulse Switch (015500?)

DJ

[raymonvdm]

Usually this is straightforward (RED / P / L) is the input and the outgoing arrow is the output.

When u remove the switch and use the naked wires (WATCH OUT HIGH VOLTAGE!!) and connect them for a second is the fibaro working as expected then?

Note: If you deassociate the fibaro al settings are lost (atleast for my fibaro versions) so are u sure that option 14 is still set correctly ?

[DJF3]

FYI

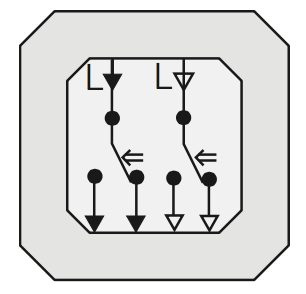

Think this is the schematics for the Gira 0155 00 pulse switch

Gira pulse switch schematics


Raymond: Using a wall plug and your "up side down" comment might be very smart . I will check!

[DJF3]

Are u using fixed cable or a wallplug so are u sure L1 is L1 and not Null because the wallplug is connected up side down?

Brilliant... This solved the problem

DJ
